Name: Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8316L
Price: 3.00 USD
Availability: InStock

Rumah > Produk > Menyembuhkan Epoxy Resin >

Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers

Low viscosity epoxy resin for transformers

H-class insulation epoxy resin

Dry type transformer epoxy resin

Tempat asal:

Cina

Nama merek:

wenyou

Sertifikasi:

ISO9001, ISO14001, SGS, and UL

Nomor model:

8316L

Hubungi kami

Permintaan Penawaran

Rincian Produk

Viskositas:

3000 - 7000Mpa.S

Kepadatan:

1,15 - 1,19g/cm3

Tekanan Uap:

<0,01pa

Titik nyala:

Sekitar 110°C

Suhu transisi kaca:

60-80°C

Penampilan:

Cairan kental transparan berwarna kuning muda

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

20kg/ember sebagai sampel

Harga

dapat dinegosiasikan

Kemasan rincian

20kg/ember, 220kg/barel, 1200kg/tangki

Waktu pengiriman

7 -10 hari kerja

Syarat-syarat pembayaran

Biasanya t/t, l/c

Menyediakan kemampuan

Stok bahan baku melimpah

Produk terkait

Video

Fast Curing Epoxy Resin with High Tensile Strength and Thermal Shock Resistance for Electrical Insulation

Dapatkan Harga Terbaik

Resin Epoksi Curing Cepat dengan Kandungan Epoksi 5,10-5,40 dan Tekanan Uap ≤0,01 untuk Aplikasi Ketahanan Panas Tinggi

Dapatkan Harga Terbaik

Resin Epoksi Dua Komponen Isolasi Listrik dengan Dekomposisi Termal >320°C dan Potlife 30 Menit untuk Transformator Tegangan Tinggi

Dapatkan Harga Terbaik

Resin Epoxy Termal Konduktif dengan Kekuatan Tinggi, Daya Tahan Lama, dan Kinerja Isolasi Kuat untuk CT PT

Dapatkan Harga Terbaik

Hubungi kami

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Hubungi sekarang

Deskripsi Produk

Low - Viscosity Cast Resin for Dry Type Transformers: Ideal for Precise Casting

Precision is key when it comes to casting resin in dry type transformers. Our low - viscosity cast resin is the perfect choice for achieving accurate and detailed casting. The low viscosity allows the resin to flow easily into every nook and cranny of the transformer mold, ensuring complete coverage of the windings and other components. This results in a uniform and high - quality casting, free from voids and imperfections. In the manufacturing of dry type transformers with complex geometries or delicate components, the low - viscosity cast resin shines. It enables manufacturers to produce transformers with precise dimensions and excellent surface finishes. Despite its low viscosity, the resin has good mechanical and electrical properties. It hardens to form a strong and durable structure, providing reliable insulation for the dry type transformer. The low - viscosity cast resin is also compatible with a wide range of casting techniques, making it versatile for different manufacturing processes. Whether you are producing small - scale or large - scale dry type transformers, this resin can help you achieve the highest level of casting precision.

Brief Introduction

LE-8316L is a modified BPA-type epoxy resin, combined with LH-8316L, a liquid modified carboxylic anhydride hardener. This system is designed for mold forming and APG injection processes, providing high-temperature curing capabilities.

Applications

This epoxy resin is ideal for low-voltage electrical applications, including electronics, cable insulation, bonding, and sealing. It is particularly suited for sealing and connecting insulation products, as well as current and voltage transformers.

Processing Methods

Processing can be carried out using a conventional gravity casting method under vacuum conditions. The production process can also be tailored to align with the client's existing manufacturing techniques.

Properties

This two-component epoxy resin system consists of LE-8316L and LH-8316L, both in liquid form at room temperature. It is suitable for casting processes, with a glass transition temperature (Tg) ranging between 60-80°C, ensuring durability under elevated temperatures.

Formulation

Epoxy resin	LE-8316L	100 pbw
Hardener	LH-8316L	100 pbw
Filler	Silica powder	300 - 400 pbw
Color paste	LC series *	Appropriate pbw

Advantage

Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers 0

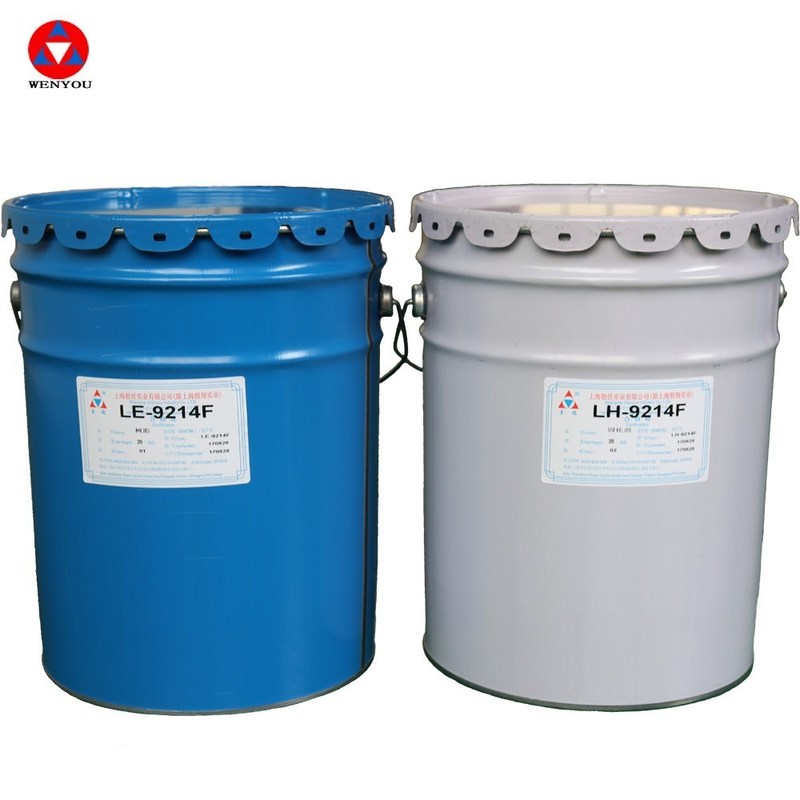

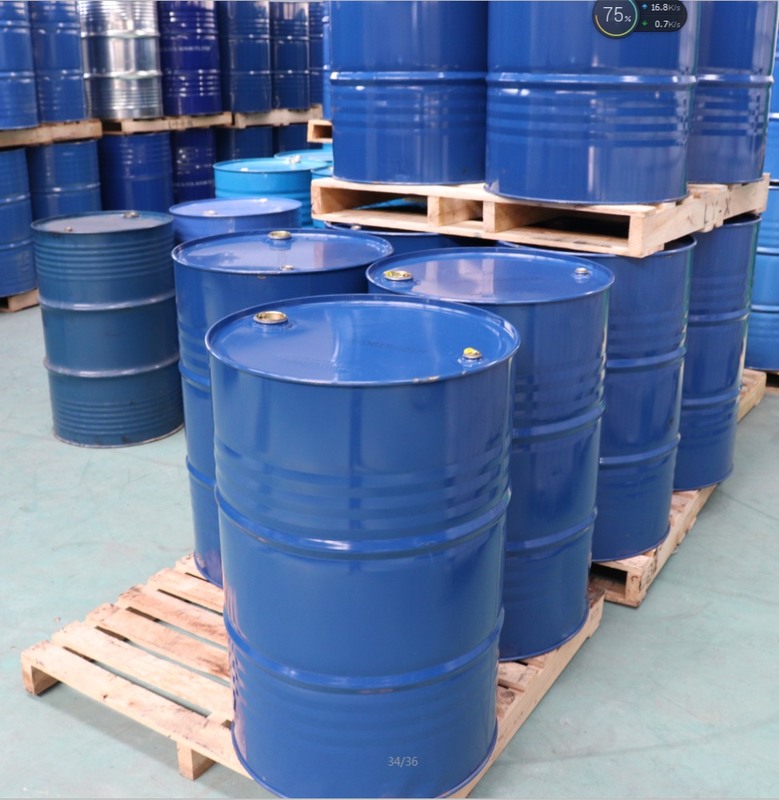

Package Image

Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers 1

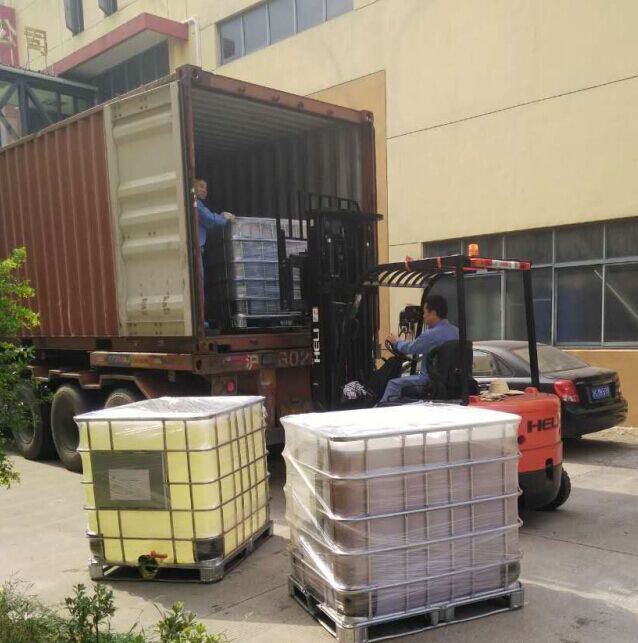

Shipment image

Example application image

Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers 3
