Name: High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9218f
Price: 2.6 USD
Availability: InStock

Rumah > Produk > Resin Epoksi Listrik >

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Tempat asal:

CINA

Nama merek:

Wenyou

Sertifikasi:

UL/SGS/REACH/RoHS

Nomor model:

9218f

Dokumen:

Wenyou catalogue-2024.pdf

Hubungi kami

Permintaan Penawaran

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Rincian Produk

Menerapkan:

trafo tegangan tinggi

Fleksibilitas:

Tinggi

Menyembuhkan penyusutan:

0,8-1,0%

Aplikasi:

Insulasi Listrik

Penggunaan:

isolasi listrik

Suhu transisi kaca:

100-120°C

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

240kg

Harga

$2.6

Kemasan rincian

20kg/220kg

Waktu pengiriman

dalam 10 hari

Syarat-syarat pembayaran

L/c, t/t

Menyediakan kemampuan

200ton/bulan

Produk terkait

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Dapatkan Harga Terbaik

9218 Resipi Epoxy Listrik Kekuatan Dampak Tinggi 10-18kJ/m2 Faktor Kerugian Rendah

Dapatkan Harga Terbaik

Video

Flame Retardant Epoxy Resin Potting Compound with 10-35kV Electrical Insulation and Modified Saturated Epoxy Resin

Dapatkan Harga Terbaik

Electrical Insulation Epoxy Resin and Liquid Mold Electrical Insulation Epoxy Resin for Medium&high Voltage Transformer

Dapatkan Harga Terbaik

Hubungi kami

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Hubungi sekarang

Deskripsi Produk

WENYOU 9218 Electrical Epoxy Resin

Premium-grade adhesive solution engineered for critical electrical insulation and bonding applications. This light yellow to colorless liquid combines exceptional mechanical strength with superior dielectric properties, making it ideal for sealing and protecting sensitive electronic components in demanding environments.

Key Features & Advantages

High Impact Resistance: Withstands 10-18kJ/m² (ISO179) for durable component protection
Low Electrical Loss: Minimal dissipation factor of 0.02 ensures energy efficiency
Thermal Stability: Glass transition temperature (Tg) of 100-120°C (ISO11357-2)
Flame Retardant: HB flammability rating (4mm thickness) enhances safety
Precision Curing: Controlled shrinkage (0.6-0.8%) maintains dimensional accuracy

Technical Specifications

Property	Test Standard	Value Range
Compressive Strength	ISO604	150-200 N/mm²
Flexural Strength	ISO178	110-140 N/mm²
Tensile Strength	ISO527	60-85 N/mm²
Epoxy Value	ISO3001	4.4-4.9
Density at 25°C	ISO1675	1.16-1.2 g/cm³
Dielectric Strength	-	20-30 kV/mm
Cure Temperature	-	130-140°C
Viscosity at 25°C	ISO12058	5.5-8.5 MPa*s

Applications

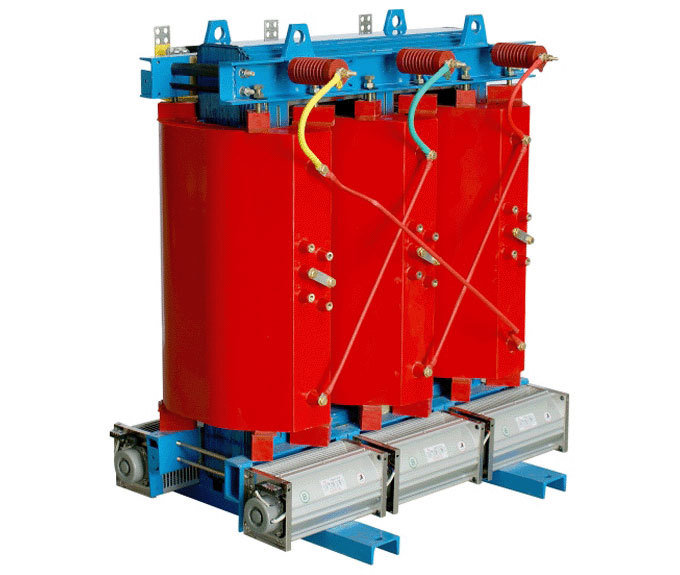

Transformer and bushing insulation
Circuit board encapsulation
High-voltage cable jointing
Switchgear component bonding
Aerospace electrical systems

Frequently Asked Questions

Q: What certifications does this resin hold?

A: REACH/RoHS/UL/SGS certifications with custom compliance options.

Q: What's the minimum order quantity?

A: 240 KG with standard 20KG/220kg packaging.

Q: How soon can orders ship?

A: Guaranteed dispatch within 10 business days.

Q: Is customization available?

A: Yes, technical parameters can be adjusted for specialized applications.

Q: What payment methods are accepted?

A: L/C and T/T transactions.
