Name: 10-35kV Insulation Epoxy Resin with Pre-Mixed Fillers for Room Temperature Cure in Electrical Components
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9229a
Price: 2.30 USD
Availability: InStock

Rumah > Produk > resin epoksi isolasi listrik >

10-35kV Insulation Epoxy Resin with Pre-Mixed Fillers for Room Temperature Cure in Electrical Components

10-35kV Insulation Epoxy Resin

Pre-Mixed Fillers Epoxy Resin

Room Temperature Cure Epoxy Resin

Tempat asal:

CINA

Nama merek:

wenyou

Sertifikasi:

ISO9001, ISO14001, SGS, and UL

Nomor model:

9229a

Hubungi kami

Permintaan Penawaran

Rincian Produk

Klasifikasi:

Perekat Komponen Ganda

Penggunaan:

10-35KV tiang terminal tertutup, trafo, trafo arus dan komponen isolasi lainnya

Aplikasi:

Isolator listrik untuk aplikasi tegangan menengah dan tinggi

Penampilan resin epoksi:

Cairan kental berwarna putih susu

Viskositas pada 40°C:

10.000 - 20.000mPa.s

Kepadatan pada 25°C:

1,55 - 1,70g/cm3

Tekanan Uap pada 25°C:

<0,01pa

Titik nyala:

Sekitar 135°C

Deskripsi:

Daya tahan lama Transformer Epoxy Resin tahan retak baik Penggunaan di luar ruangan

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

20kg/ember sebagai sampel

Harga

dapat dinegosiasikan

Kemasan rincian

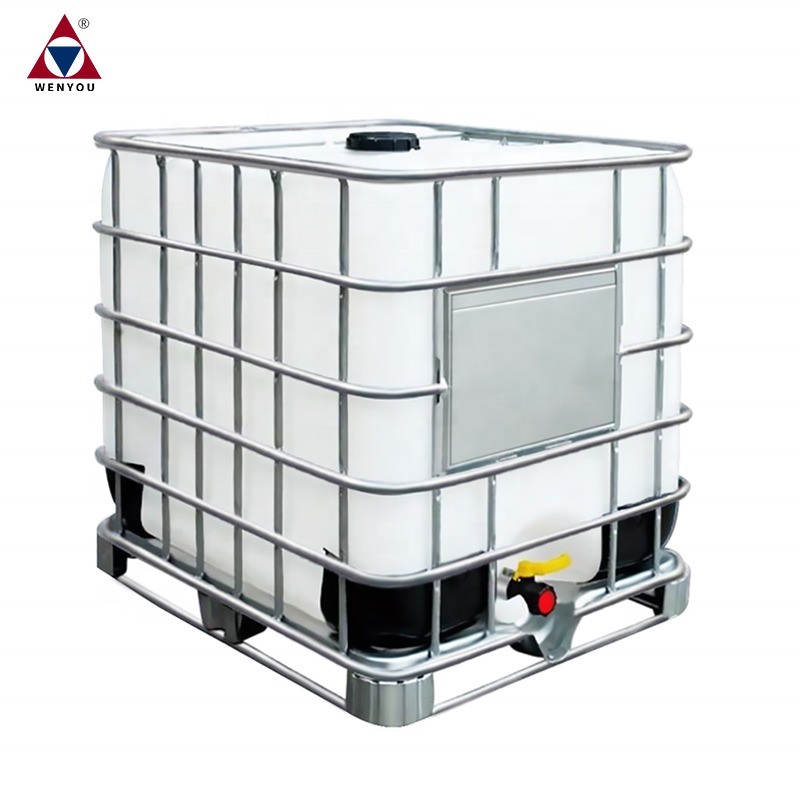

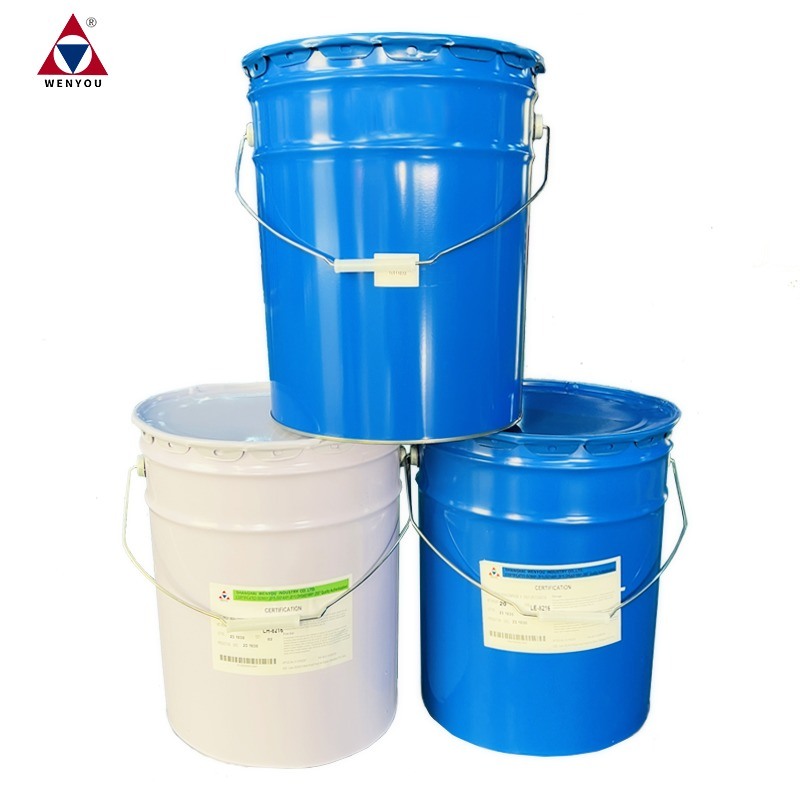

20kg/ember, 220kg/barel, 1200kg/tangki

Waktu pengiriman

7 -10 hari kerja

Syarat-syarat pembayaran

Biasanya t/t, l/c

Menyediakan kemampuan

Stok bahan baku melimpah

Produk terkait

Video

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

Dapatkan Harga Terbaik

Video

Epoxy dengan kekuatan dielektrik tinggi untuk isolasi CT/PT & enkapsulasi suhu ruangan

Dapatkan Harga Terbaik

Video

Fast Room Temp Cure Epoxy Resin untuk CT / PT Transformer Potting & Encapsulation

Dapatkan Harga Terbaik

Video

Epoxy tahan api viskositas rendah untuk impregnasi kumparan transformator bebas vakum

Dapatkan Harga Terbaik

Hubungi kami

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Hubungi sekarang

Deskripsi Produk

Crystal Clear Epoxy Resin Liquid for Electrical Components & Insulation

LW-9229A/B: Crack-Resistant Room Temp Cure Epoxy for 10-35kV CT/PT Insulation & Outdoor Encapsulation

UL-Certified | Pre-Mixed Fillers | Superior Dielectric Strength

Engineered for outdoor electrical insulation in Current Transformers (CT) and Potential Transformers (PT), this modified BPA epoxy system delivers crack-resistant encapsulation for 10-35kV terminal posts, bushings, and transformer components. With pre-mixed fillers in both resin (LW-9229A) and hardener (LW-9229B), it ensures consistent thermal shock resistance and long-term durability in harsh environments.

Key Advantages

Crack Resistance: Withstands thermal cycling for outdoor applications.
High Dielectric Strength: Critical for 10-35kV insulation systems.
Pre-Mixed Fillers: Simplified processing, no weighing errors.
Room Temperature Cure: Energy-efficient transformer manufacturing.
Moisture & Chemical Resistance: Protects CT/PT units from environmental degradation.

Applications

Ideal for:

10-35kV sealed terminal posts
CT/PT transformer potting & coil encapsulation
Outdoor bushings, insulators, switchgear
High-voltage electrical insulation components

Processing Methods

Method	Benefit
Vacuum Gravity Casting	Bubble-free encapsulation for complex geometries.
Automatic Pressure Gelation (APG)	High-yield production of crack-resistant parts.

Critical Properties

Property	Value/Description
Filler Status	Pre-mixed in resin & hardener
Dielectric Strength	>22 kV/mm (ASTM D149)
Thermal Shock Resistance	Excellent (1,000+ cycles, IEC 60216)
Crack Resistance	Optimized for outdoor exposure
Viscosity	Slurry liquid for deep gap filling
Certification	UL 94 V-0 (Flame Retardant)

Formulation Guide

Component	Product	Proportion
Epoxy Resin	LW-9229A	100 pbw
Hardener	LW-9229B	100 pbw
Colorant	LC-Series*	1 pbw

*Color paste optional for UV-stable pigmentation.

Why Choose LW-9229A/B?

This electrical-grade epoxy combines BPA's structural strength with pre-mixed fillers for unmatched crack resistance in outdoor applications. Its slurry viscosity ensures perfect gap filling for CT/PT windings, while room temperature curing reduces production costs. Ideal for 10-35kV terminal posts and transformer encapsulation, it delivers lifelong moisture resistance and dielectric performance under thermal cycling.

Advantage

Package Image

Shipment Image

Example Application Image
